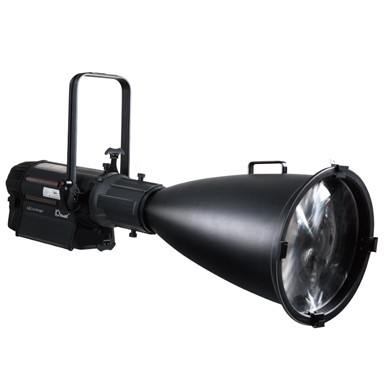

LED full color fixed angle profile light

Light source
1、Light source and its place of original : It is our own research parameter technology and ask to custom made  by leds factory , item No. is 5050 RGBW
2、LEDs light source quantity : adopt 24 pcs 5050 RGBW LED modules
3、Single 5050 RGBW power : red 3W,green 5W, blue 5W,warm white 10W
4、LEDs life : 50000-100000 hours

Products power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : 2700-10000W white 220W , single red 55W, single green 100W, single blue 100W
3、Power change : there is power change when it start work and during working ,because different color led source brightness are following the temperature become less, in order to reduce the brightness difference and spectrum difference, we use software specially deal with it, so when the light start and working there is power change, CCT different, power different , when it is warm CCT its power change bigger, when it is cool white CCT the power change less

Function specific and operation
1、Display screen : it is OLED screen , full Chinese and English operate,screen size 30×15mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew , it can use our own research programmer machine to refresh software,even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control ,knob to control dim, CCT, DUV
5、Control signal : DMX control ,with RDM function
6、DMX channel : there are 3 channel and 9 channel models option
7、Dimming : 16 bit above smooth flicker-free dimming,dim not delay, dim freshen frequency 20k(20000Hz) above
8、CCT tunable : there is smooth and no flicker when tuning the CCT , 0.5% brightness still can tun CCT
9、Zoom model : manual zoom
10、Radiation : adopt fan that speed adjustable  ,custom made  intelligently fan, the fan not move when dim less 20%
11、Noisy : the fan not move when dim less 20%,no noisy at all , when the fan running at the biggest power noisy less than 20db at 1 meter. There is  no fan version option
12、Ambient temperature : -25℃ to 40℃
13、IP rate : IP20

Light effects character and parameter
1、CCT : 2700-10000k tunable by controller or knob manual tunable . when use knob adjust CCT  will show in the screen, 100K for one level , when it is tunning the brightness difference less than 10%
2、CCT and color mix accordance : full color profile light mix color and CCT difference bigger than panel light’s, because the profile light optics are much more complex than panel light, it through multi optics assembles in the  profile light
3、CRI : average ≥94
4、TLCI : average ≥93
5、DUV : it is adjustable on plus-minus , average adjustable from +0.018 to -0.02 , it can adjust by manual knob or controller, when it use knob to adjust shows on the screen .
6、Color : it can 360 °spectrum color mix, by red, green, blue ,warm white 4 color can mix all kinds of color
7、Luminous flux : 2700K/5640 lm、3200K/6050lm、5600K/6020 lm、single red /530 lm、single green /1380 lm、Single blue /360 lm
8、Beam angle : 5°、10°、14°、19°、26°、36°、50 °option
9、Optics system : light through 7 times optics assemble,it make the beam no yellow edge,no blue edge,no strange ,no dispersion ,mix color very even,no shadow

Products materials, light case surface treatment ,accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray ,light case color can be custom made according to customer’s require
3、Standard accessories match : soft lens , power input/output plug, signal connector 1 pair .  can custom made match according to customer’s require
4、Iris and logo holder : There are iris and logo holder as extra accessories if customer need
5、About battery : it can match portable battery 110-240V  from third party . can not match battery less than 100V
Main difference between fan version and no fan version : Their all data are same length different ,longer 6 cm ,more weight 1.1kg and price different
