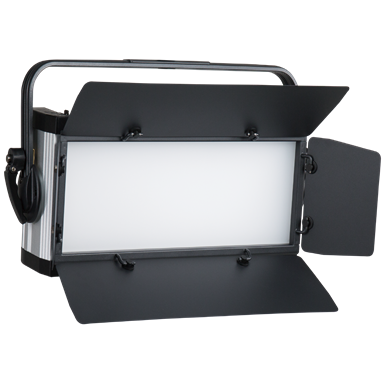

CCT tuneable studio TV film panel light(C)

Light source
1、Light source and its place of original : It is our own research parameter technology and ask to custom made  by leds factory , item No. is 2835 warm white and cool white
2、LEDs light source quantity : adopt 800 pcs LEDs .  400 pcs warm white, 400 pcs cool white
3、Every single pcs power : 0.6W , actually use power 0.2-0.3W , so that to keep optical high efficiency ,LEDs low temperature and long life
4、LEDs life : 50000-100000 hours

Products power
1、Input voltage : AC100-240V/50-60Hz
2、Most output power : 130W
3、Power change : There is no power change when the light keep working or tuning CCT

Function specific and operation
1、Display screen : it is LCD screen , full Chinese and English operate,screen size 35×29mm
2、Display screen logo custom made : Display screen can custom made logo with single color
3、Soft ware custom made : Software can be revised,custom made,renew , it can use our own research programmer machine to refresh software,even you use the lights for some days, use DMX connect to refresh
4、Control model : DMX signal control or button key control ,knob to control dim, CCT
5、Control Signal : DMX control ,with RDM function
6、DMX channel : 2 channels
7、Dimming : 16 bit above smooth flicker-free dimming,dim not delay, dim freshen frequency 20k(20000Hz) above
8、CCT tuneable : there is smooth and no flicker when tuning  CCT , 0.5% brightness still can tun CCT .
9、Radiation : No fan radiation
10、Ambient temperature : -25℃ to 40℃
11、IP rate : IP20

Light effects character and parameter
1、CCT : 2700-6200k tuneable by controller or knob manual tuneable . when use knob adjust CCT  will show in the screen, 100K for one level .
2、CRI : average ≥95
3、TLCI : average ≥95
4、Luminous flux : 6200K/ 8200 lm、2700K/ 7600 lm
5、Light-emitting area : 435X155mm
6、Beam angle : 105° (the angle in 50% lux of centre )

Products materials, light case surface treatment ,accessories match
1、Main construction materials : Main materials are aluminium alloy
2、Light case surface treatment : Surface treatment is oxidize and spray ,light case color can be custom made according to customer’s require
3、Standard accessories match : barndoor, power input/output plug, signal connector 1 pair .  can custom made match according to customer’s require
4、Soft lens use : front lens changeable
5、Barndoor use : barndoor moveable
6、Grate use : The grate install and removable , can custom made different grate
7、About battery : it can match portable battery 110-240V  from third party . can not match battery less than 110V

Product  size and weight
1、Inner size : with barndoor  57X15X30cm,without barndoor 57X11.5X30cm
2、Packing size : 63X24X38cm
3、Net weight : 7.8kg (light 6.7kg, barndoor 1.1kg )
4、Gross weight : 9.2kg
